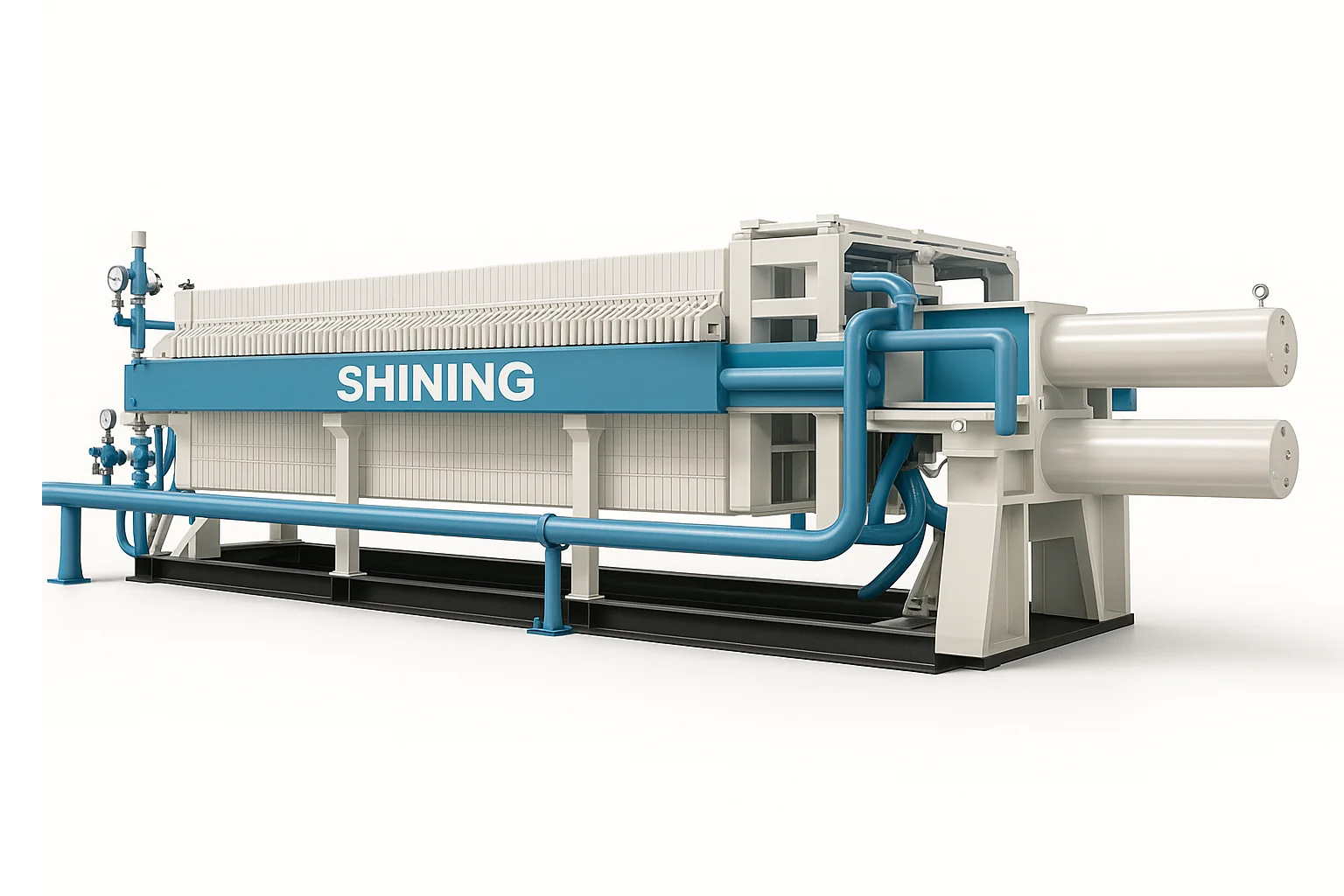

Diaphragm Filter Press
Elastic diaphragms in plates enable secondary cake compression, reducing moisture below 15%. Energy-efficient with outstanding dewatering performance, meeting precision process requirements.
Marbre
Ciment
Verre
Industriel
Lithium Iron Phosphate Production & Purification & Battery Recycling
|
Filtration volume (m³) |
Plate Size (mm) |
Cake Thickness (mm) |
Number of filter chambers (Pcs) |
Footing center (mm) |
Overall dimensions (mm) |
Filtration pressure (MPa) |
Weight (Kg) |
|---|---|---|---|---|---|---|---|
|
4.408 |
1500*1500*75 |
40 |
65 |
6730 |
9040*2280*1800 |
0.5-1.6 |
23700 |
|
5.852 |
1500*1500*75 |
40 |
77 |
7650 |
9960*2500*1800 |
0.5-1.6 |
25940 |
|
6.840 |
1500*1500*75 |
40 |
90 |
8650 |
11050*2500*1800 |
0.5-1.6 |
28080 |
|
7.830 |
1500*1500*75 |
40 |
103 |
9660 |
11970*2500*1800 |
0.5-1.6 |
29190 |
|
8.816 |
1500*1500*75 |
40 |
116 |
10660 |
12970*2500*1800 |
0.5-1.6 |
30350 |
|
9.728 |
1500*1500*75 |
40 |
128 |
11430 |
13740*2500*1800 |
0.5-1.6 |
32140 |
|
Filtration volume (m³) |
Plate Size (mm) |
Cake Thickness (mm) |
Number of filter chambers (Pcs) |
Footing center (mm) |
Overall dimensions (mm) |
Filtration pressure (MPa) |
Weight (Kg) |
|---|---|---|---|---|---|---|---|
|
14.58 |
2000*2000*85 |
40 |
90 |
10150 |
12600*3350*2300 |
0.5-1.6 |
57900 |
|
15.71 |
2000*2000*85 |
40 |
97 |
10750 |
13200*3350*2300 |
0.5-1.6 |
59640 |
|
16.85 |
2000*2000*85 |
40 |
104 |
11370 |
13820*3350*2300 |
0.5-1.6 |
61360 |
|
17.98 |
2000*2000*85 |
40 |
111 |
11970 |
14420*3350*2300 |
0.5-1.6 |
63250 |
|
Filtration volume (m³) |
Plate Size (mm) |
Cake Thickness (mm) |
Number of filter chambers (Pcs) |
Footing center (mm) |
Overall dimensions (mm) |
Filtration pressure (MPa) |
Weight (Kg) |
|---|---|---|---|---|---|---|---|
|
14.58 |
2000*2000*85 |
40 |
90 |
10150 |
12600*3350*2300 |
0.5-1.6 |
57900 |
|
15.71 |
2000*2000*85 |
40 |
97 |
10750 |
13200*3350*2300 |
0.5-1.6 |
59640 |
|
16.85 |
2000*2000*85 |
40 |
104 |
11370 |
13820*3350*2300 |
0.5-1.6 |
61360 |
|
17.98 |
2000*2000*85 |
40 |
111 |
11970 |
14420*3350*2300 |
0.5-1.6 |
63250 |
Modular Filter Chamber Design (80-150 Optional Choices)
2.0 MPa High-Pressure System
One-Click Automation
